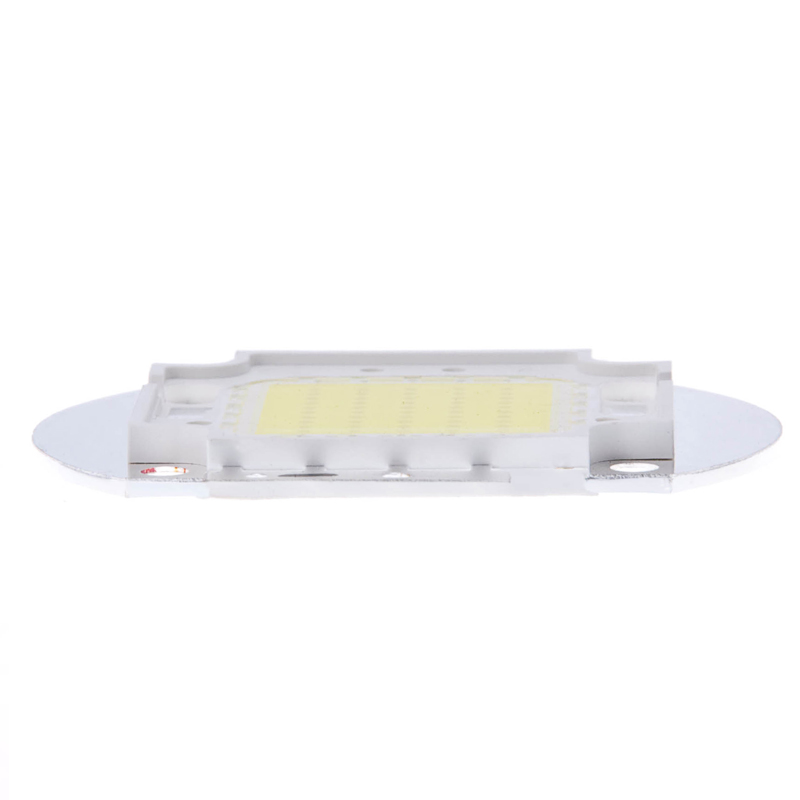

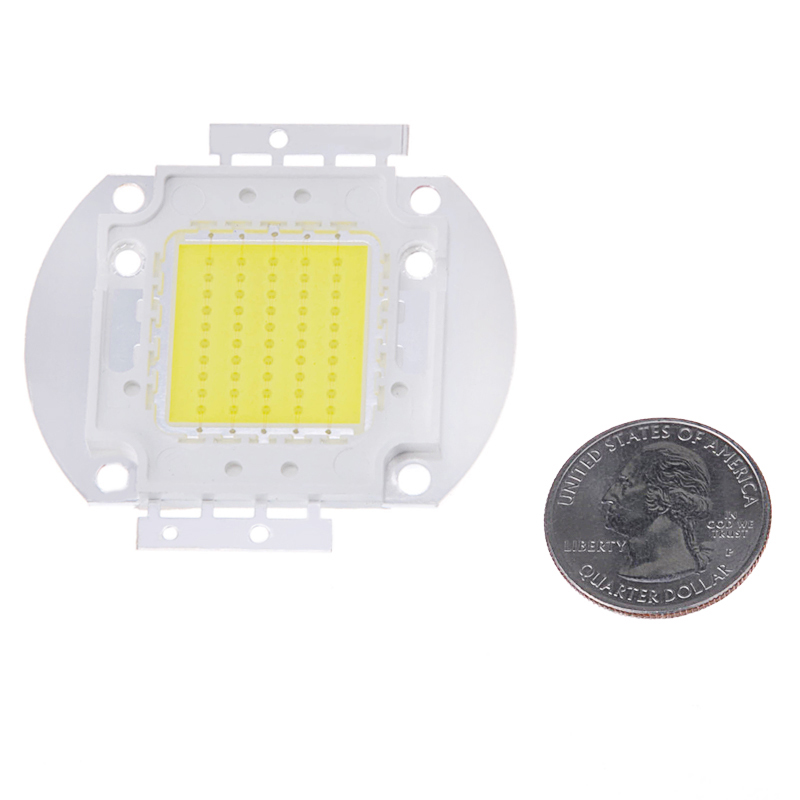

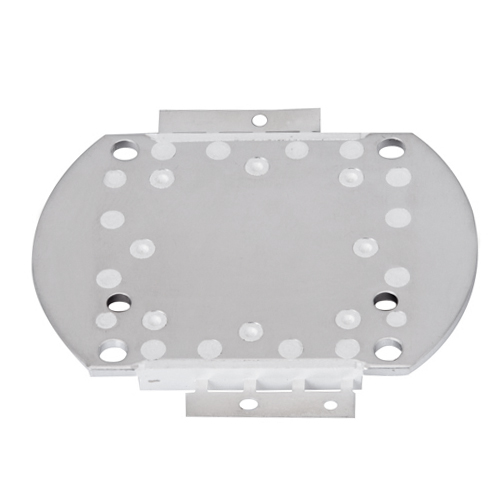

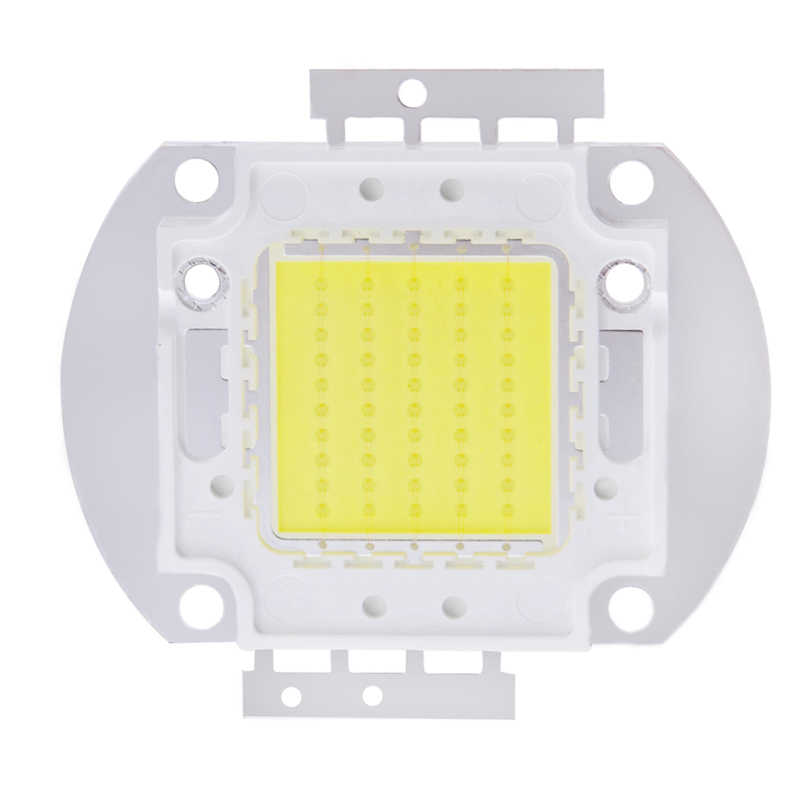

High Power COB LED - 50W - Cool White 12000K [HL-50W-12K]

High Power COB LED - 50W - Cool White 12000K

(0) Write a Review

[ SKU: HL-50W-12K ]

Processing Time will be calculated when item is selected

Ship to:

Shipping Time: Please choose a shipping method at checkout

Starting at $27.95

QTY

Send Inquiry

Qty Discounts New Price

10 - 49	$27.11
50 - 99	$26.55
100 - 499	$25.16
500 - 999	$23.76
1000 +	$22.36
*Qty discounts will be automatically applied

Product Information

Product Details

Description

DC Forward Current: Typ. 1500mA ( 1.5A )
DC Forward Voltage: 30V Min. ~ 36V Max. ( 33V Typ. )
Power Consumption: 50 Watts
Emitting Color(s): Cool White rated at 12000K
Luminous Flux up to 4000 Lumens
View Angle of Half Power is 140 Degree
Operation Temperature: -20℃ ~ 50℃
Storage Temperature: -20℃ ~ 100℃
Soldering Temperature: 260℃ within 5 Seconds
Additional Heatsink is required when operation temperature is higher than 50℃
Additional aluminum heatsink and fans work together to make leds perform better
Extra Constant Current LED Driver is required to drive the LED
Please install and operate the LED as per specifications and instructions
Damage from improper installation or abuse will invalid warranty
Qualified electricians who are familiar with LEDs are highly recommended

This product was added to our catalog on Friday 22 June, 2012.

Specifications

SPECIFICATIONS
PART NUMBER :	HL-50WHPL-RD-12K
Main Features
COLOR		SIZE	MATERIAL	LENS TYPE
Cool White		50W Emitter	InGaN	Yellow Diffuse
Absolute Maximum Ratings: (TA=25°C)
PARAMETER		SYMBOL	RATING	UNIT
Continuous Forward Current		IF	1500	mA
Peak Forward Current		IFP	1800	mA
Power Dissipation		PD	50000	mW
Reverse Voltage		VR	5	V
Operating Temperature		TA	-20 ~ 50	°C
Storage Temperature		TSTG	-20 ~ 100	°C
Lead Soldering Temperature		TSOL		Max.260°C for 5 Seconds Max.
Typical Optoelectric Characteristics
PARAMETER		SYMBOL	MAX	TYP	UNIT
Test (Forward Current)		IF	1800	1500	mA
Forward Voltage		VF	36	33	V
Reverse Current		IR	/	50	μA
View Angle of Half Power		2σ1/2	140	120	Degree
Wavelength		λD	/	/	nm
CCT Range		λD	15000	12000	K
Luminous Intensity		IV	/	/	mcd
Luminous Flux		φv	4500	4000	lm
