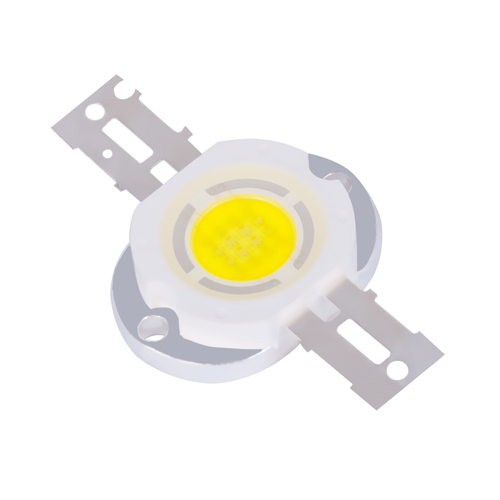

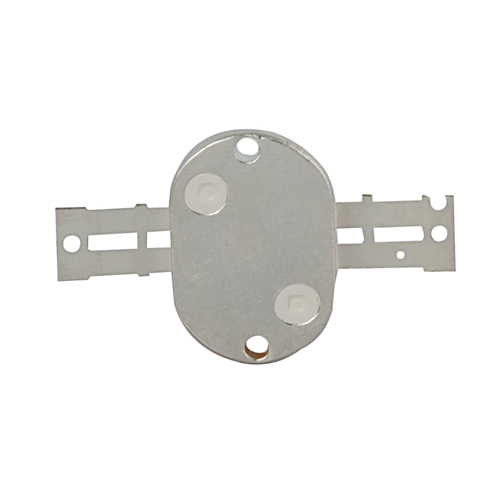

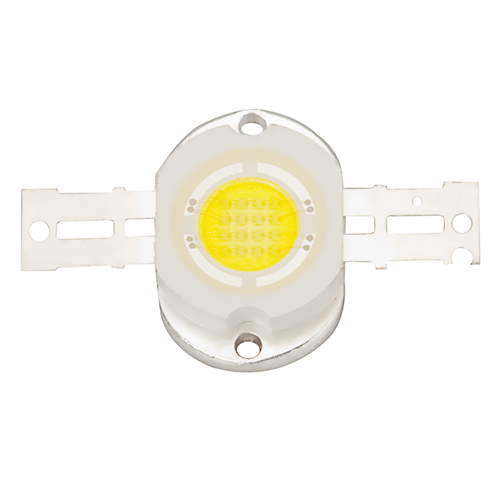

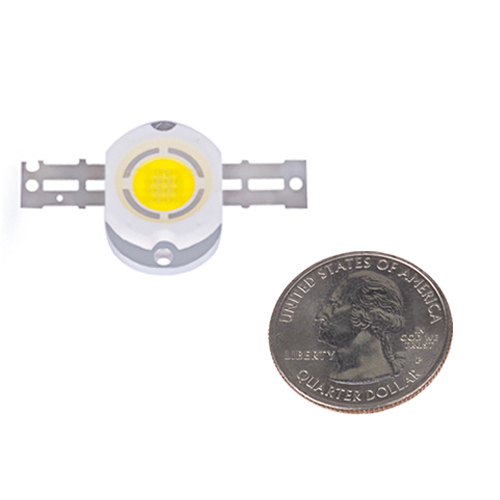

HERO-LED 20W High Power LEDs, Cool White 6000K [HL-20W-CW]

HERO-LED 20W High Power LEDs, Cool White 6000K

(0) Write a Review

[ SKU: HL-20WHPL-RD-CW ]

LED Color:

Cool White 6000K

Processing Time will be calculated when item is selected

Ship to:

Shipping Time: Please choose a shipping method at checkout

$11.57

QTY

Send Inquiry

Qty Discounts New Price

10 - 49	$11.22
50 - 99	$10.99
100 - 499	$10.41
500 - 999	$9.84
1000 +	$9.26
*Qty discounts will be automatically applied

Product Information

Product Details

Description

DC Forward Current: Typ. 1400mA ( 1.4A )
DC Forward Voltage: 13V Min. ~ 15V Max. ( 14V Typ. )
Power Consumption: 20 Watts
Emitting Color(s): Cool White rated at 6000K
Luminous Flux up to 1600 Lumens
View Angle of Half Power is 140 Degree
Operation Temperature: -20℃ ~ 50℃
Storage Temperature: -20℃ ~ 100℃
Soldering Temperature: 260℃ within 5 Seconds
Additional Heatsink is required when operation temperature is higher than 50℃
Additional aluminum heatsink and fans work together to make leds perform better
Extra Constant Current LED Driver is required to drive the LED
Please install and operate the LED as per specifications and instructions
Damage from improper installation or abuse will invalid warranty
Qualified electricians who are familiar with LEDs are highly recommended

This product was added to our catalog on Thursday 21 June, 2012.

Specifications

SPECIFICATIONS
PART NUMBER :	HL-20WHPL-RD-CW
Main Features
COLOR		SIZE	MATERIAL	LENS TYPE
Cool White		20W Emitter	InGaN	Yellow Diffuse
Absolute Maximum Ratings: (TA=25°C)
PARAMETER		SYMBOL	RATING	UNIT
Continuous Forward Current		IF	1400	mA
Peak Forward Current		IFP	1800	mA
Power Dissipation		PD	20,000	mW
Reverse Voltage		VR	5	V
Operating Temperature		TA	-20 ~ 50	°C
Storage Temperature		TSTG	-20 ~ 100	°C
Lead Soldering Temperature		TSOL		Max.260°C for 5 Seconds Max.
Typical Optoelectric Characteristics
PARAMETER		SYMBOL	MAX	TYP	UNIT
Test (Forward Current)		IF	1800	1400	mA
Forward Voltage		VF	15	14	V
Reverse Current		IR	50	/	μA
View Angle of Half Power		2σ1/2	/	140	Degree
Wavelength		λD	/	/	nm
CCT Range		λD	6500	6000	K
Luminous Intensity		IV	/	/	mcd
Luminous Flux		φv	1800	1600	lm
